Product Details
Place of Origin: China
Brand Name: Demo
Certification: RoHS, CE, FCC
Model Number: DM-SMD-0603IR940-BM120-C
Payment & Shipping Terms
Minimum Order Quantity: 1000
Packaging Details: Waterproof Bag
Delivery Time: 3-7 days
Payment Terms: T/T, PayPal, Westernunion
Supply Ability: Daily 20kk+
Type: |
High Power Led |
Application: |
IR Sensors |
HS Code: |
8541410000 |
Power: |
3W |
Power Dissipation: |
60mW |
Wavelength: |
935-946nm |
Forward Voltage: |
1.2-1.5V |
Forward Current: |
500mA |
Beam Angle: |
120deg |

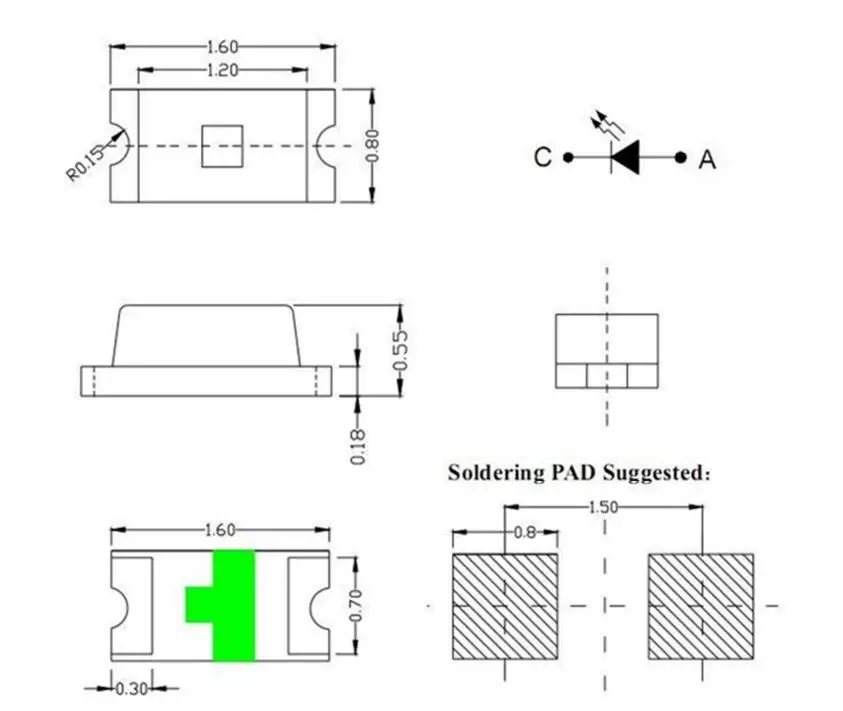

Chip Size: |
1.6mm*0.8mm*0.6mm |
Type: |
High Power Led |
Application: |
IR Sensors |
HS Code: |
8541410000 |
Power: |
3W |
Power Dissipation: |
60mW |
Wavelength: |
935-946nm |
Forward Voltage: |
1.2-1.5V |
Forward Current: |
500mA |
Beam Angle: |
120deg |
Chip Size: |
1.6mm*0.8mm*0.6mm |

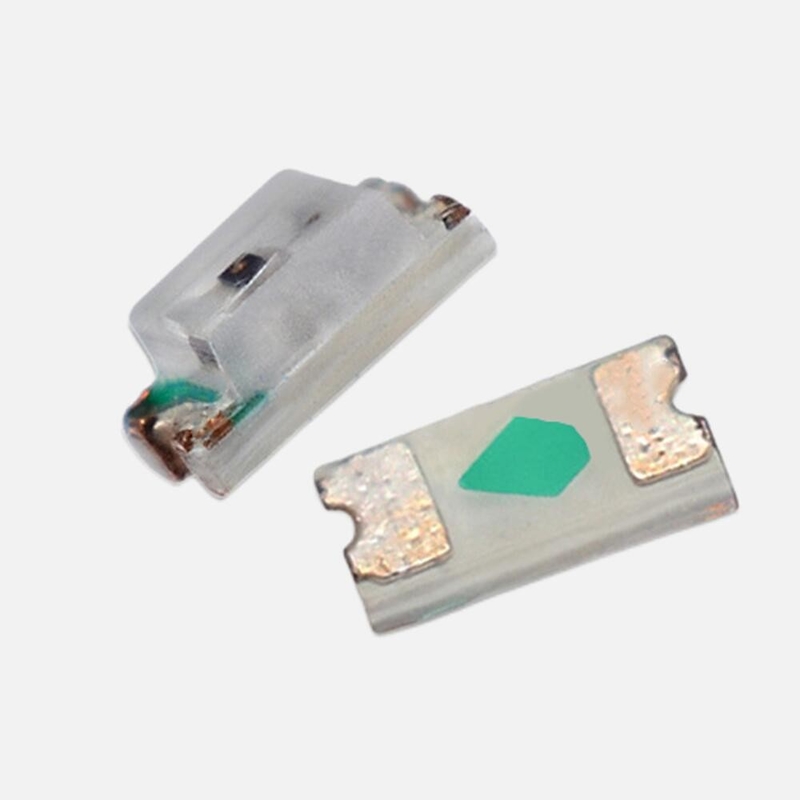

Factory Delivery High Power LED 940nm Infrared IR Receiver 120deg 0603 SMD LED for IR Sensors
The Factory Delivery High Power LED 940nm Infrared IR Receiver in a 120-degree 0603 SMD LED package is the ideal choice for a wide range of IR sensor applications. From security systems and remote controls to proximity sensors and communication devices, this high-power IR emitter ensures reliable and accurate performance, making it the backbone of cutting-edge technology that relies on infrared sensing.
|
Power |
3W |
|
Wavelength |
935-946nm |
|
Forward Voltage |
1.2-1.5V |
|
Forward Current |
500mA |
| Power Dissipation | 60mW |
|
Beam Angle |
120deg |
|
Chip Size |
1.6mm*0.8mm*0.6mm |
