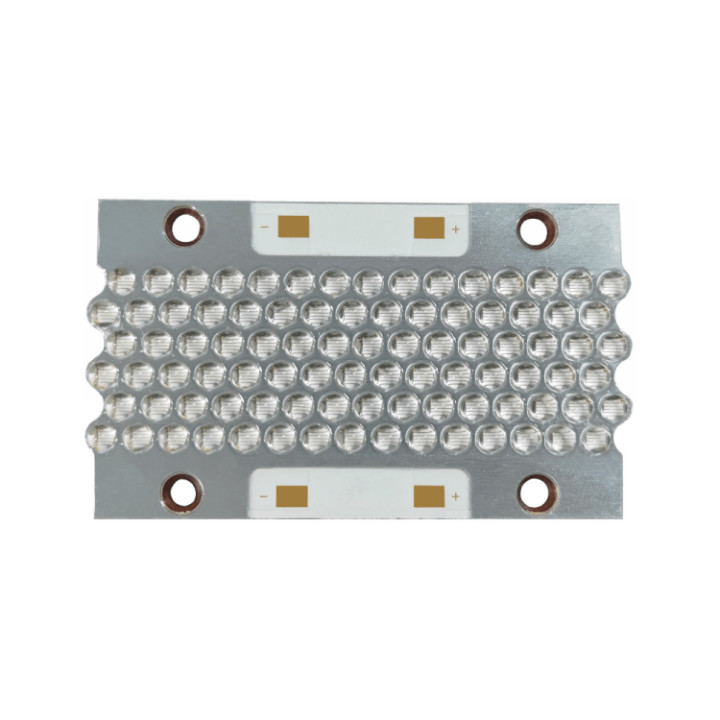

Product Details
Place of Origin: China
Brand Name: Demo
Certification: RoHS, CE, FCC
Model Number: DM-GS6236UV-1506-A45
Payment & Shipping Terms
Minimum Order Quantity: 1000
Packaging Details: Waterproof Bag
Delivery Time: 3-7 days
Payment Terms: T/T, PayPal, Westernunion
Supply Ability: Daily 20kk+
LED Type: |
UV Diode |
HS Code: |
9405409000 |
Size: |

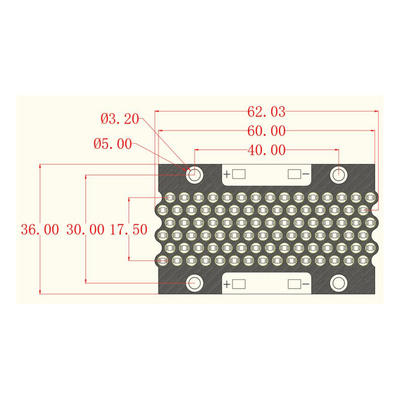

62×(L)×36(W)×4.3/3.5(T)mm |
Peak Wavelength: |
365nm |
Voltage: |
47-52V(If=2.1-4.2A) |
Central Radiation Intensity: |
(H=1cm)If=2.1A:7-9W/cm², If=4.2A:10-12W/cm² |
Beam Angle: |
30/60deg |
Max Power Consumption: |
218.4W |
Peak Forward Current: |
4200mA |
Substrate: |
Copper |
LED Type: |
UV Diode |
HS Code: |
9405409000 |
Size: |
62×(L)×36(W)×4.3/3.5(T)mm |
Peak Wavelength: |
365nm |
Voltage: |
47-52V(If=2.1-4.2A) |
Central Radiation Intensity: |
(H=1cm)If=2.1A:7-9W/cm², If=4.2A:10-12W/cm² |
Beam Angle: |
30/60deg |
Max Power Consumption: |
218.4W |
Peak Forward Current: |
4200mA |
Substrate: |
Copper |
Features:
APPLICATION:
Technical Parameters:
|
Type |
UV Diode |
| Peak Wavelength | 365nm |
| Size | 62x(L)x36(W)x4.3/3.5(T)mm |
| Power Consumption | 218.4W |
| Central Radiation Intensity | (H=1cm)If=2.1A:7-9W/cm², If=4.2A:10-12W/cm² |
| Forward Voltage | 47-52V(If=2.1-4.2A) |
| Peak Forward Current | 4200mA |
| Beam Angle | 30/60 deg |
Related Series:
| Model | Peak Wavelength | Size | Forward Voltage | Peak Forward Current |
Beam Angle |
Power Consumption |
| DM-GS6236UV-1506-A45 | 385nm/395nm/405nm | 62×(L)×36(W)×4.3/3.5(T)mm | 47-52v | 4200mA | 30/60deg | 218.4W |
