Product Details
Place of Origin: China
Brand Name: Demo
Certification: RoHS, CE, FCC
Model Number: DM-SMD2835-R625-PCT120-C
Payment & Shipping Terms
Minimum Order Quantity: 1000
Packaging Details: Waterproof Bag
Delivery Time: 3-7 days
Payment Terms: T/T, PayPal, Westernunion
Supply Ability: Daily 20kk+
Type: |
SMD LED Diode |
HS Code: |
8541410090 |
Size: |
2.8*3.5mm |
Emitting Color: |
Red Color |
Dominant Wavelength: |
620-625nm |
Luminous Intensity: |
3-5LM |
Beam Angle: |
120deg |
Forward Voltage: |
2.0-2.4V |
Lens: |
Clear Lens |
Forward Current: |
20mA |
Max Power Consumption: |
66MW |
Chip Material: |
AlGaInP |
Bond Wire: |
Gold |
Bracket: |
PCT |
Type: |
SMD LED Diode |
HS Code: |
8541410090 |
Size: |
2.8*3.5mm |
Emitting Color: |
Red Color |
Dominant Wavelength: |
620-625nm |
Luminous Intensity: |
3-5LM |
Beam Angle: |
120deg |
Forward Voltage: |
2.0-2.4V |
Lens: |
Clear Lens |
Forward Current: |
20mA |
Max Power Consumption: |
66MW |
Chip Material: |
AlGaInP |
Bond Wire: |
Gold |
Bracket: |
PCT |
Features:
Technical Parameters:
| Type | SMD LED Diode |
| Size | 2.8x3.5mm |
| Dominant Wavelength | 620-625nm |
| Luminous Intensity | 3-5LM |
| Forward Voltage | 2.0-2.4V |
| Max Power Consumption | 66MW |
| Beam Angle | 120deg |
| Forward Current | 20mA |
| LED Lens | clear lens |
| Bond Wire | gold wire |
| Package | 4000pcs/bag |
| Chip Material | AlGaInP |
| Bracket | PCT |

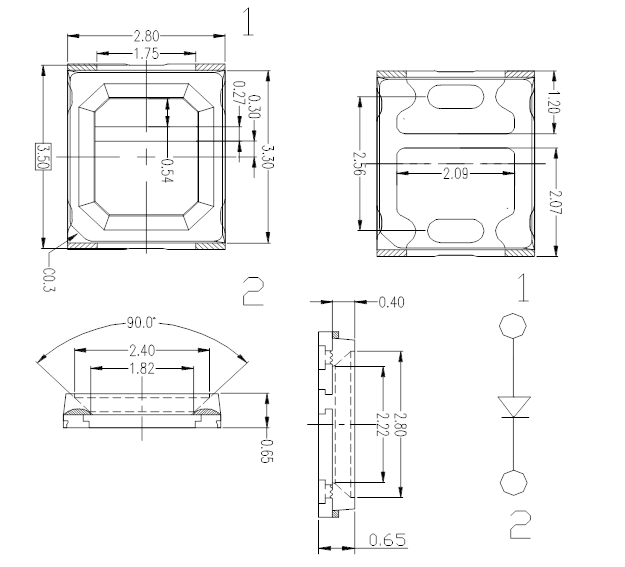

Package Dimension:
Related Series:
| Model | Color | Dominant Wavelength/CCT | Forward Voltage | Max Power Consumption | Luminous Intensity |
| DM-SMD2835-G525-PCT120-C | green |
520-525nm |
3.0-3.4V | 96MW | 8-12LM |
| DM-SMD2835-B465-PCT120-C | blue | 460-470nm | 3.0-3.4V | 96MW | 1-2LM |
| DM-SMD2835-Y590-PCT120-C | yellow | 590-595nm | 2.0-2.4V | 66MW | 2-4LM |
| DM-SMD2835-R625-PCT120-C | red | 620-625nm | 2.0-2.4V | 66MW | 3-5LM |
| DM-SMD2835-W6500-PCT120-Y | white | 6000-6500K | 3.0-3.4V | 96MW | 10-12LM |
