Product Details
Place of Origin: China
Brand Name: Demo
Certification: RoHS, CE, FCC
Model Number: YLL-T35Y-CY-D30-X
Payment & Shipping Terms
Minimum Order Quantity: 2000
Packaging Details: Tape Packaging
Delivery Time: 3-7 days
Payment Terms: T/T, PayPal, Westernunion
Supply Ability: Daily 20kk+
Type: |
SMD |
Emitting Color: |
Yellow Color |
Forward Voltage: |
2.0-2.6V |
Dominant Wavelength: |
588-596nm |
Size: |
3.5 X 2.8mm |
Power Dissipation: |
40mW@20mA 100mW@50mA |
Forward Current: |
20mA-50mA |
View Angle: |
30° |
Luminous Intensity: |
3000-6000mcd@20mA 6500-8500mcd@50mA |
Shape: |
Ball Head |
Type: |
SMD |
Emitting Color: |
Yellow Color |
Forward Voltage: |
2.0-2.6V |
Dominant Wavelength: |
588-596nm |
Size: |
3.5 X 2.8mm |
Power Dissipation: |
40mW@20mA 100mW@50mA |
Forward Current: |
20mA-50mA |
View Angle: |
30° |
Luminous Intensity: |
3000-6000mcd@20mA 6500-8500mcd@50mA |
Shape: |
Ball Head |
Features:
Rich Amber Hue with Precision Wavelength: Delivers a distinct warm yellow amber color with a precise wavelength range of 588 to 596nm, ensuring a vibrant and accurate color output ideal for premium lighting designs.
Exceptional Brightness with High Luminous Intensity: Boasts a luminous intensity range of 6500 to 8500 millicandela (mcd), providing superior brightness and excellent visibility even in low-light environments.
Space-Saving, High-Performance SMD 3528 Configuration: The compact and space-efficient SMD 3528 format allows for easy integration in tight spaces, without compromising on performance or light output.
Precision-Focused 30° Beam Angle: With a narrow 30° beam angle, this LED produces highly focused, directional light, perfect for applications that require concentrated illumination, such as accent or task lighting.
Innovative Ball Head Design for Superior Heat Management: The ball head shape not only maximizes light diffusion but also enhances heat dissipation, ensuring consistent performance and extending the lifespan of the LED.
Eco-Friendly, Energy-Efficient Operation: Designed with energy conservation in mind, this LED consumes minimal power while producing optimal brightness, making it an environmentally friendly and cost-effective lighting solution.
Wide-Ranging Applications: Versatile for a broad spectrum of uses, from automotive lighting and decorative features to signage and signal applications, meeting the diverse needs of modern illumination.
Extended Lifespan and Durability: Built for longevity, this LED minimizes the need for frequent replacements, providing a more sustainable and reliable lighting solution over time.
APPLICATION:
Technical Parameters:
| Type | SMD LED Chip |
| Peak Wavelength | 588-596nm |
| Size | 3.5 x 2.8 mm |
| Power Dissipation | 100mW@50mA 40mW@20mA |
| Forward Voltage | 2.0-2.6V |
| Forward Current | 20mA-50mA |
| Luminous Intensity | 3000-6000mcd@20mA 6500-8500mcd@50mA |
| Beam Angle | 30deg |

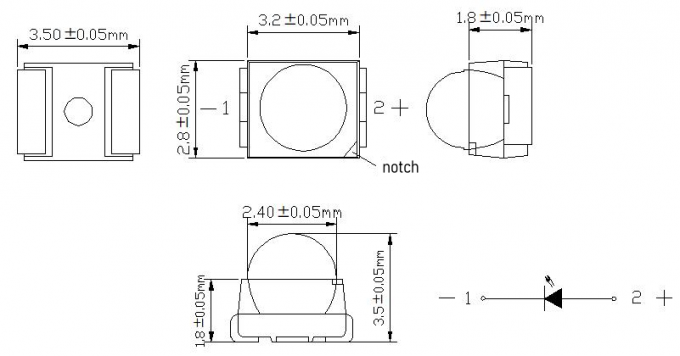

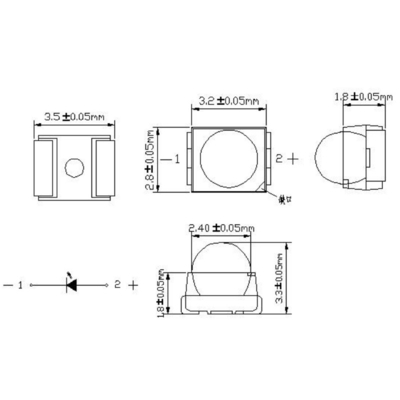

Package Outline Dimensions:
Support and Services:
FAQ
Q1:What is the nature of your company, are you a manufacturer or a trading company?
A1: We take pride in being a distinguished manufacturer with over 10 years of experience in the LED industry.
Q2: Why choose you as a LED supplier?
A2: You will get high quality LEDs with competitive prices, fast delivery and good after-sale service.
Q3: Is there a minimum order quantity (MOQ) for LED products?
A3: Yes, we do have a minimum order quantity (MOQ) requirement. Typically, the MOQ is set at 1000 pieces
for the majority of our LEDs, except for white color and warm white LEDs.
Q4: Can I request samples before placing a larger order?
A4: We understand the importance of evaluating our products before making a substantial purchase. We offer
some free of charge samples for most of the LEDs but please agree to bear the freight for the sample delivery.
Q5: What is the estimated lead-time for order delivery?
A5: Once the payment is confirmed, we strive to ensure efficient order processing and timely delivery. In general,
delivery leadtime for most orders is 7-10 days after payment is confirmed. If shipping by express, the shipment
takes 5-7 days to arrive by air.
Q6: How are the goods shipped, and what is the expected delivery timeframe?
A6: We primarily rely on renowned courier services such as DHL, UPS, FedEx for shipping our products. The
delivery time will depend on the courier's schedule and your location.
Q7: Can you provide additional services such as LED pin cutting or customized packaging as per our
specific requirements?
A7: Absolutely. We value our customers' unique needs, and as such, we offer customized manufacturing
services. Whether it's LED pin cutting or personalized packaging, we are committed to fulfilling your requests
to the best of our ability.
Q8: How about the quality of your LEDs? Do you have any certificates for your LEDs?
A8: All our LEDs are good quality with RoHS, CE and FCC certificates.
Q9: Can I request customized LED specifications or special requirements?
A9: Certainly. We understand that different projects may have specific LED requirements. We offer
customization options for LED specifications, such as color temperature, beam angle, and brightness, to meet
your unique needs. Please contact our sales team to discuss your specific requirements.
Q10: What payment methods do you accept?
A10: We accept various payment methods, including bank transfers, PayPal, and credit card payments. Our
team will provide you with detailed payment instructions upon order confirmation.
