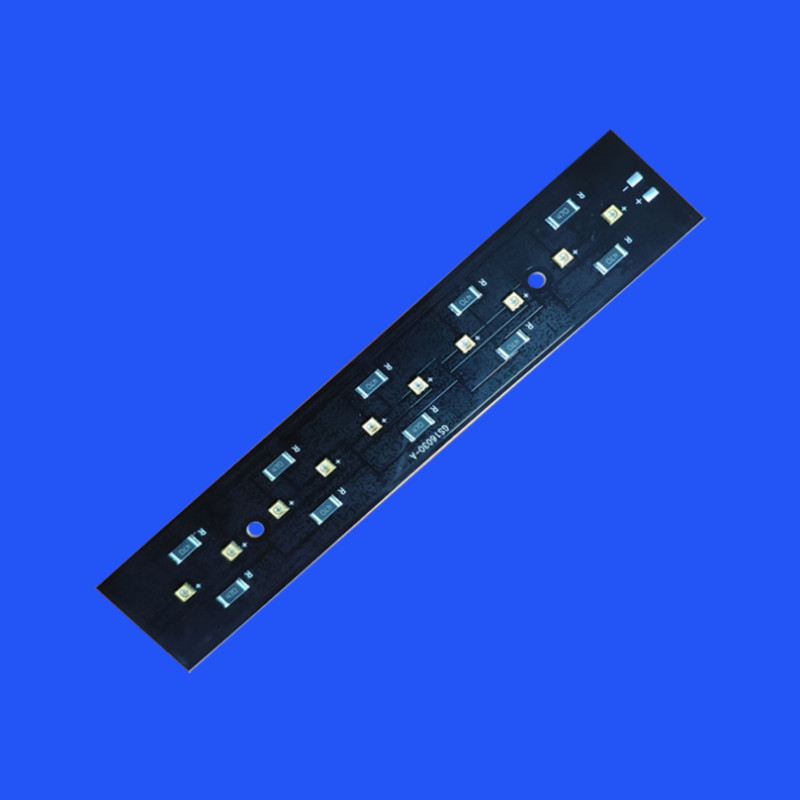

160*30mm 310nm 12-18W 120 Deg UV LED Lights COB Module For Air Purification

Product Details

Place of Origin: China

Brand Name: Demo

Certification: RoHS, CE, FCC

Model Number: DM-D-16030P20

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Waterproof Bag

Delivery Time: 3-7 days

Payment Terms: T/T, PayPal, Westernunion

Get Best Price
Highlight:

310nm UV LED Lights

,

160*30mm UV LED Lights

,

12-18W UV LED Lights

LED Type:
UV LED Lights
HS Code:
9405409000
Peak Wavelength:
255nm / 275nm / 310nm
Power Consumption:
12-18W
Radiant Flux:
130-200mW
Voltage:
12V
Beam Angle:
120deg
Size:
160x30mm
Peak Forward Current:
1-1.5mA
Substrate:
Copper
LED Type:
UV LED Lights
HS Code:
9405409000
Peak Wavelength:
255nm / 275nm / 310nm
Power Consumption:
12-18W
Radiant Flux:
130-200mW
Voltage:
12V
Beam Angle:
120deg
Size:
160x30mm
Peak Forward Current:
1-1.5mA
Substrate:
Copper
160*30mm 310nm 12-18W 120 Deg UV LED Lights COB Module For Air Purification

Features:



-Suitable for different working environment

-High radiant power density

-Quartz glass protection

-Ultra high density industrial grade appliactions

-High cost-effectiveness

-Customizable





APPLICATION:



  • Sterilization
  • Water sterilization
  • Air Purification
  • Chemical Detection
  • Food Preservation
  • Phototherapy Instrument
  • Climbing lamp
  • Plant growth



Technical Parameters:



Type

UV LED Lights

Peak Wavelength 255nm 275nm 310nm

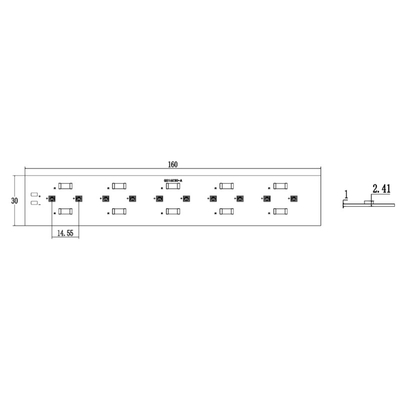

Size 160x30mm
Power Consumption 12-18W
Radiant Flux 130-200mW
Forward Voltage 12V
Peak Forward Current 1-1.5mA
Beam Angle 120deg





Technical Advantage:




160*30mm 310nm 12-18W 120 Deg UV LED Lights COB Module For Air Purification 1



160*30mm 310nm 12-18W 120 Deg UV LED Lights COB Module For Air Purification 2
