Home > products > LED Light Emitting Diode > F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED

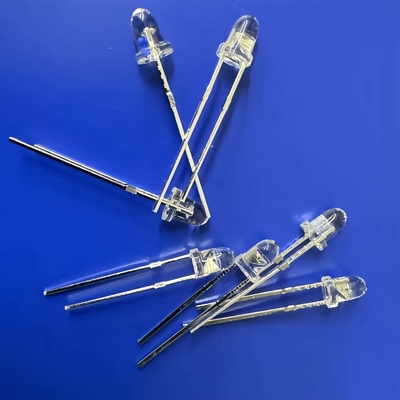

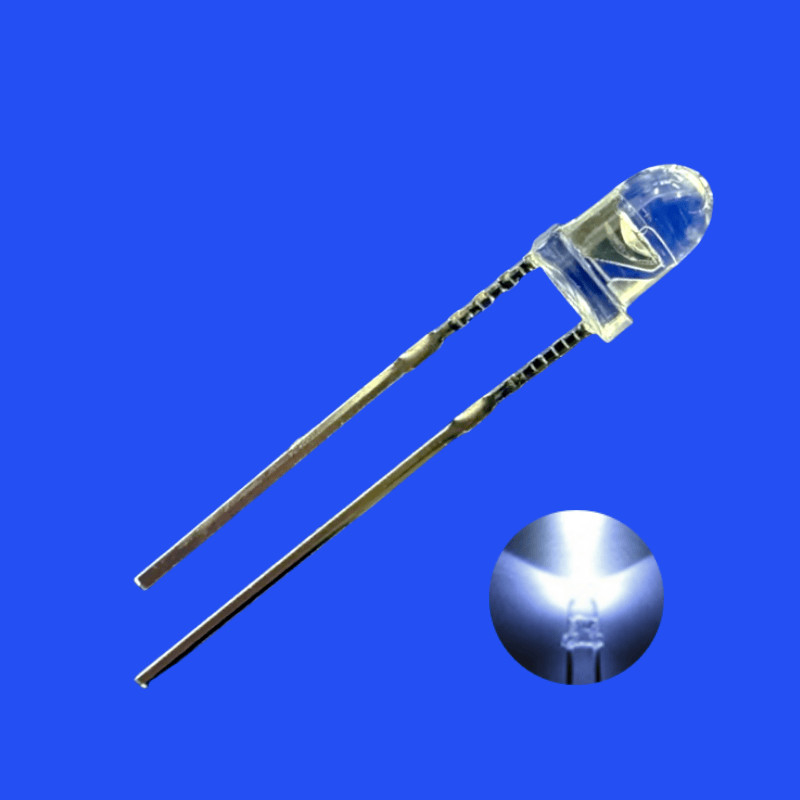

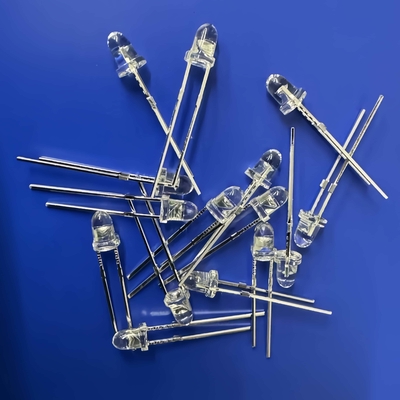

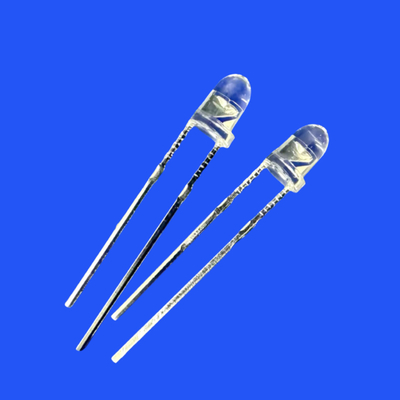

F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED

Product Details

Place of Origin: China

Brand Name: Demo

Certification: RoHS, CE, FCC

Model Number: DM-50327EH-03Nw4500Ra90-BMS15-0.2W-C

Payment & Shipping Terms

Minimum Order Quantity: 20000pcs

Packaging Details: Waterproof Bag

Delivery Time: 3-7 days

Payment Terms: T/T, PayPal, Westernunion

Supply Ability: Daily 20kk+

Get Best Price
Highlight:

High CRI light emitting diode

,

10000mcd light emitting diode

,

15 Deg led light emitting diode

Type:
LED Light Emitting Diode
HS Code:
8541410090
LED Size:
3mm
Luminous Intensity:
8000-10000mcd
Color Render Index:
Ra92
Color Temperature:
4000-5000K (nature White)
Beam Angle:
15deg
Forward Voltage:
3.0-3.2V
Power Dissipation:
200mW
Continuous Forward Current:
30mA
LED Shape:
Bullet Head
LED Lens Color:
Clear Lens
LED Pins:
Short Pins
Chip Material:
InGaN
Type:
LED Light Emitting Diode
HS Code:
8541410090
LED Size:
3mm
Luminous Intensity:
8000-10000mcd
Color Render Index:
Ra92
Color Temperature:
4000-5000K (nature White)
Beam Angle:
15deg
Forward Voltage:
3.0-3.2V
Power Dissipation:
200mW
Continuous Forward Current:
30mA
LED Shape:
Bullet Head
LED Lens Color:
Clear Lens
LED Pins:
Short Pins
Chip Material:
InGaN
F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED

Features:



Chips: Utilization of renowned brands such as Epistar, San'an, EpiLEDs, AMIC, and others.
Die Bonding: Premium-grade die bonding adhesives.
Wire Bonding: Use of gold and silver alloy wire for wire bonding.
Sealing Adhesives: High-performance, heat-resistant encapsulants.
Lead Frame Material: The lead frame is fabricated from iron with a silver (Ag) coating, ensuring exceptional thermal and electrical conductivity, which significantly enhances the overall efficiency and lifespan of the LED.
Rigorous Quality Assurance and Reliability Testing: Comprehensive testing protocols to ensure product quality and reliability.
Custom Manufacturing Services: Tailored solutions including customized LED pin configurations, adjustable beam angles, integration of resistors, capacitors, and ICs, as well as pin cutting, shaping, and braiding services.





Technical Parameters:



Type through hole LED
Size 3mm
Lens Color transparent lens
Emitting Color nature white color
Color Render Index Ra>90
Color Temperature 4000-5000K
Luminous Intensity 8000-10000mcd
Voltage 3.0-3.2V
Beam Angle 15 deg
Continuous Forward Current 30mA
Power 0.2W
LED Shape bullet head
LED Pins short pins
Package 1000pcs/bag
Chip Brand EpiStar/ San'an/ EpiLEDs/ AMIC/Focus/HC
Chip Material InGaN
Stent Material iron stent plated with Ag

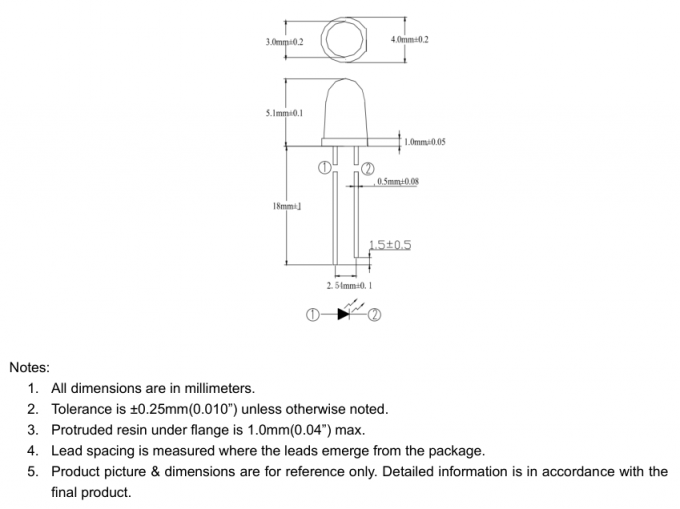

Dimension:

F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 0



F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 1



F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 2



F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 3



F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 1





Customization:



F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 5



F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 6



F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 7

F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 8

F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 9Support and Services:

F3 High CRI Ra>90 10000mcd Narrow Beam Angle 15 Deg Nature White Color Clear Lens Bullet Head 3mm LED 10





FAQ
Q1:What is the nature of your company, are you a manufacturer or a trading company?
A1: We take pride in being a distinguished manufacturer with over 10 years of experience in the LED industry.


Q2: Why choose you as a LED supplier?
A2: You will get high quality LEDs with competitive prices, fast delivery and good after-sale service.


Q3: Is there a minimum order quantity (MOQ) for LED products?
A3: Yes, we do have a minimum order quantity (MOQ) requirement. Typically, the MOQ is set at 1000 pieces

for the majority of our LEDs, except for white color and warm white LEDs.


Q4: Can I request samples before placing a larger order?
A4: We understand the importance of evaluating our products before making a substantial purchase. We offer

some free of charge samples for most of the LEDs but please agree to bear the freight for the sample delivery.


Q5: What is the estimated lead-time for order delivery?
A5: Once the payment is confirmed, we strive to ensure efficient order processing and timely delivery. In general,

delivery leadtime for most orders is 7-10 days after payment is confirmed. If shipping by express, the shipment

takes 5-7 days to arrive by air.


Q6: How are the goods shipped, and what is the expected delivery timeframe?
A6: We primarily rely on renowned courier services such as DHL, UPS, FedEx for shipping our products. The

delivery time will depend on the courier's schedule and your location.


Q7: Can you provide additional services such as LED pin cutting or customized packaging as per our

specific requirements?
A7: Absolutely. We value our customers' unique needs, and as such, we offer customized manufacturing

services. Whether it's LED pin cutting or personalized packaging, we are committed to fulfilling your requests

to the best of our ability.


Q8: How about the quality of your LEDs? Do you have any certificates for your LEDs?
A8: All our LEDs are good quality with RoHS, CE and FCC certificates.


Q9: Can I request customized LED specifications or special requirements?
A9: Certainly. We understand that different projects may have specific LED requirements. We offer

customization options for LED specifications, such as color temperature, beam angle, and brightness, to meet

your unique needs. Please contact our sales team to discuss your specific requirements.


Q10: What payment methods do you accept?
A10: We accept various payment methods, including bank transfers, PayPal, and credit card payments. Our

team will provide you with detailed payment instructions upon order confirmation.
