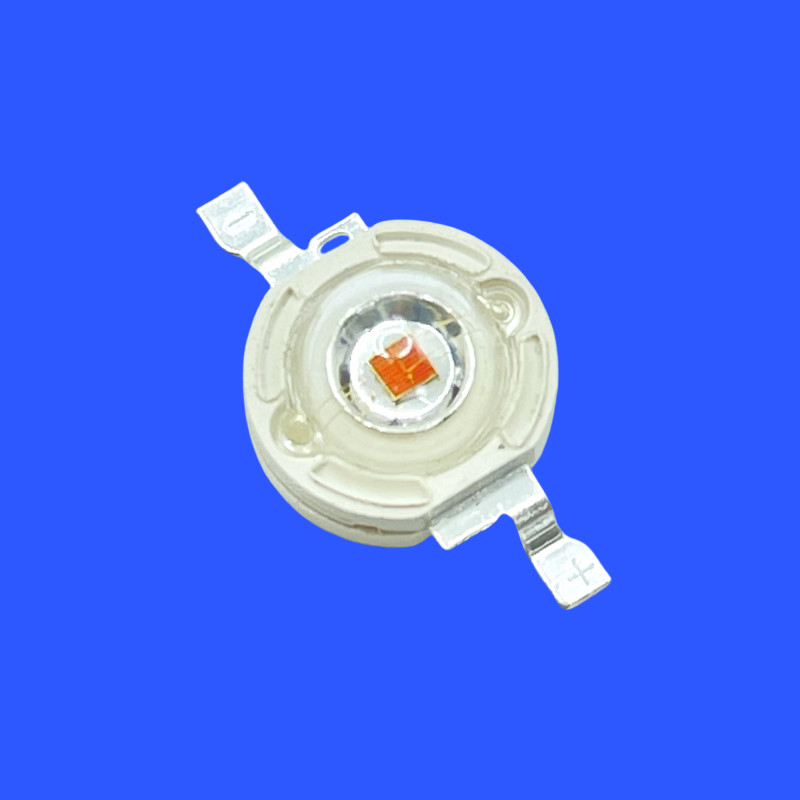

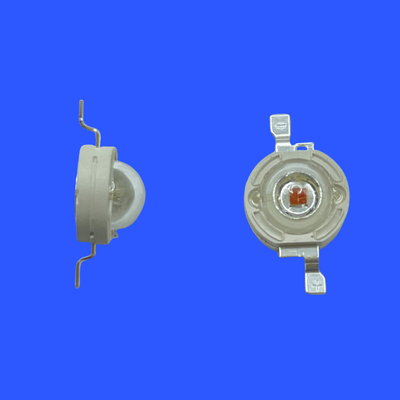

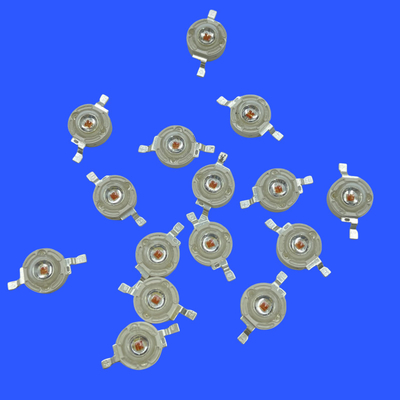

590nm - 595nm 2.5-2.7V Clear Convex Lens 120 Deg 3W High Power Yellow LED For Public Information

Product Details

Place of Origin: China

Brand Name: Demo

Certification: RoHS, CE, FCC

Model Number: DM-DZ2-Y590-FBM120-3W-C

Payment & Shipping Terms

Minimum Order Quantity: 1000

Packaging Details: Waterproof Bag

Delivery Time: 3-7 days

Payment Terms: T/T, PayPal, Westernunion

Supply Ability: Daily 20kk+

Get Best Price
Highlight:

590nm High Power Yellow LED

,

120 Deg High Power Yellow LED

,

595nm high power led chip

Type:
High Power Led
HS Code:
8541410000
Application:
Traffic And Street Signs; Bus And Train Station Displays
LED Emitting Color:
Yellow Color
Forward Voltage:
2.5-2.7V
Luminous Intensity:
110-130LM@IF=700mA
Power:
3W
Wavelength:
590-595nm
Beam Angle:
120deg
LED Lens:
Clear Convex Lens
Type:
High Power Led
HS Code:
8541410000
Application:
Traffic And Street Signs; Bus And Train Station Displays
LED Emitting Color:
Yellow Color
Forward Voltage:
2.5-2.7V
Luminous Intensity:
110-130LM@IF=700mA
Power:
3W
Wavelength:
590-595nm
Beam Angle:
120deg
LED Lens:
Clear Convex Lens
590nm - 595nm 2.5-2.7V Clear Convex Lens 120 Deg 3W High Power Yellow LED For Public Information

Features:



  • Vivid Yellow Color: Emitting light in the 590nm - 595nm wavelength range, this LED produces a bright and highly visible yellow light, ensuring high clarity and attention-grabbing illumination for public information displays.
  • High Power Output: With a 3W power rating, this LED delivers a strong luminous flux, providing high-intensity yellow light that is perfect for outdoor and indoor displays, traffic signals, and signage.
  • Clear Convex Lens: The clear convex lens design maximizes light transmission and ensures optimal beam focus, producing a uniform and wide light distribution with minimal loss of brightness.
  • Wide Viewing Angle: Featuring a 120° beam angle, this LED provides broad light dispersion, making it ideal for applications requiring wide coverage and visibility, such as traffic signs, emergency indicators, and public display boards.
  • Energy Efficient: With a voltage range of 2.5V - 2.7V, this LED is designed to provide high brightness while maintaining excellent energy efficiency, making it an environmentally friendly and cost-effective lighting solution.
  • Durability and Long Life: Built to last, this high-power LED is designed for long-term performance in demanding environments. Its durable construction ensures that it withstands outdoor conditions and continues to perform for many years with minimal maintenance.
  • High Luminous Efficiency: This LED offers an impressive balance between high power output and energy consumption, ensuring that it provides bright illumination while keeping operating costs low.
  • Versatile Applications: The LED is suitable for a wide range of public information applications, including traffic signals, pedestrian crossing signs, emergency lighting, public announcement displays, and other visual indicators requiring clear and bright yellow light.
  • Compact and Space-Saving: Despite its high power output, this LED diode is compact in size, making it easy to integrate into various signage and lighting systems without taking up excessive space.
  • Reliable Performance in Varied Conditions: The high-quality construction and robust design of this LED ensure reliable performance in outdoor environments, withstanding exposure to weather elements such as rain, heat, and cold.
  • Enhanced Visibility: The clear, focused light produced by this LED ensures excellent visibility, even from long distances or in bright outdoor environments, making it ideal for use in public spaces where visibility is crucial.
  • Cost-Effective: Offering high performance with low energy consumption and a long lifespan, this LED provides a cost-effective solution for large-scale or continuous-use applications.





Application:

590nm - 595nm 2.5-2.7V Clear Convex Lens 120 Deg 3W High Power Yellow LED For Public Information 0





Products in Series:



Model.

Power

Wavelength

Forward Voltage

Emitted Color

DM-DZ2-UV365-FBM120-3W-C

3W

365-370nm

3.4-3.6V

purple

DM-DZ2-UV405-FBM140-3W-C

3W

405-410nm

3.4-3.6V

purple

DM-DZ2-B435-FBM140-3W-C

3W

430-440nm

3.4-3.6V

bluish violet

DM-DZ2-B480-FBM120-3W-C 3W 480-485nm 3.2-3.4V blue
DM-DZ2-G525-FBM120-3W-C 3W 520-525nm 3.2-3.4V green
DM-DZ2-G545-FBM120-3W-C 3W 545-550nm 3.2-3.4V green
DM-DZ2-Y590-FBM120-3W-C 3W 590-595nm 2.5-2.7V yellow
DM-DZ2-R625-FBM120-3W-C 3W 620-630nm 2.4-2.6V red
DM-DZ2-DR655-FBM120-3W-C 3W 650-660nm 2.0-2.2V red
DM-DZ2-IR740-FBM120-3W-C 3W 735-745nm 1.9-2.1V infrared
DM-DZ2-IR850-FBM120-3W-C 3W 845-850nm 1.4-1.6V infrared
DM-DZ2-IR940-FBM120-3W-C 3W 940-945nm 1.5-1.7V infrared
DM-DZ2-IR1050-FBM120-3W-C 3W 1020-1050nm 1.5-1.7V infrared
DM-DZ2-IR1450-FBM120-3W-C 3W 1400-1500nm 1.0-1.2V infrared

590nm - 595nm 2.5-2.7V Clear Convex Lens 120 Deg 3W High Power Yellow LED For Public Information 1

590nm - 595nm 2.5-2.7V Clear Convex Lens 120 Deg 3W High Power Yellow LED For Public Information 2

Customization:

590nm - 595nm 2.5-2.7V Clear Convex Lens 120 Deg 3W High Power Yellow LED For Public Information 3

590nm - 595nm 2.5-2.7V Clear Convex Lens 120 Deg 3W High Power Yellow LED For Public Information 4

Support and Services:

590nm - 595nm 2.5-2.7V Clear Convex Lens 120 Deg 3W High Power Yellow LED For Public Information 5
