Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector

Product Details

Place of Origin: China

Brand Name: Demo

Certification: RoHS

Model Number: DM-SMD-2835IR1550E-BM120-C

Payment & Shipping Terms

Minimum Order Quantity: 1000

Packaging Details: Waterproof Bag

Delivery Time: 3-7 days

Payment Terms: T/T, PayPal, Westernunion

Get Best Price
Highlight:
Product Name:
IR LED Diode
Package Type:
SMD
DC Forward Current:
20mA
Forward Voltage:
0.85-1.05V
Power Dissipation:
2mW
Peak Wavelength:
1500-1600nm
Radiant Power:
1.2-2.5mW
View Angle:
120deg
Size:
2.8x3.5mm
Package:
PLCC-2 Package
Pulse Forward Current:
50mA
Switching Time:
10/10ns
Product Name:
IR LED Diode
Package Type:
SMD
DC Forward Current:
20mA
Forward Voltage:
0.85-1.05V
Power Dissipation:
2mW
Peak Wavelength:
1500-1600nm
Radiant Power:
1.2-2.5mW
View Angle:
120deg
Size:
2.8x3.5mm
Package:
PLCC-2 Package
Pulse Forward Current:
50mA
Switching Time:
10/10ns

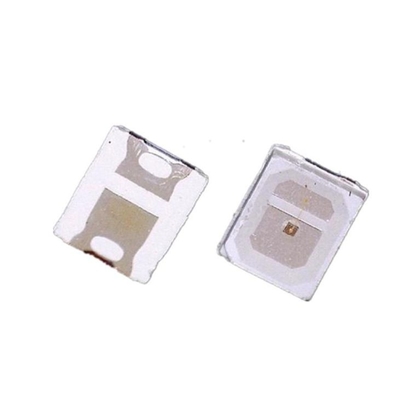

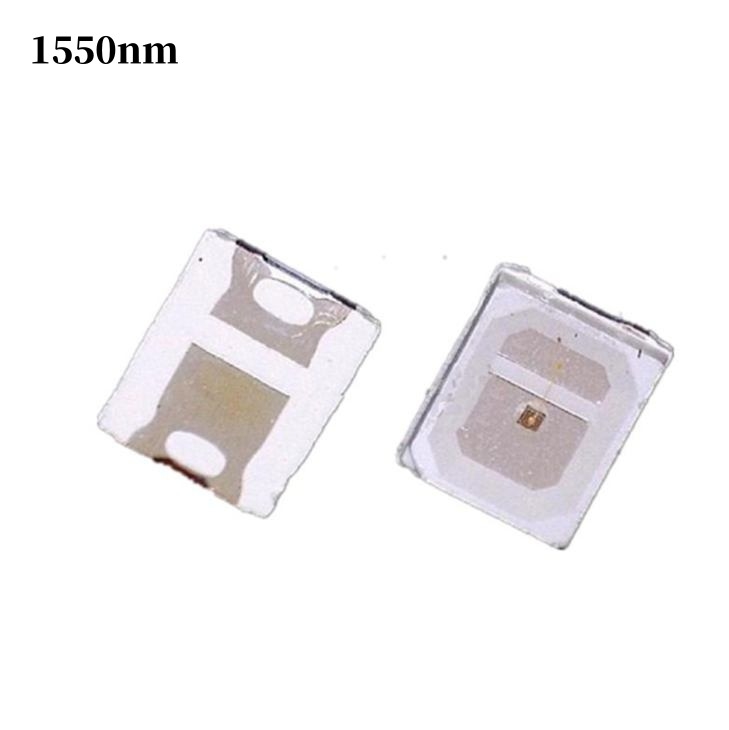

Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector

Features:



  1. PLCC-2 package
  2. high radiant intensity
  3. Suitable for automatic placement equipment
  4. Suitable for reflow and wave solder processes
  5. Available on tape and reel
  6. Pb-free and RoHS compliant





Advantages:



Eye-Safe Wavelength (1550nm)

  • Unlike 850nm or 940nm IR LEDs, 1550nm is considered eye-safe, especially important in devices installed in homes or public spaces.
  • Reduces health risks in long-term exposed environments.

Enhanced Smoke Detection Performance

  • 1550nm is more sensitive to specific particle sizes (e.g., water-based or oily smoke);
  • Improves accuracy and responsiveness in optical scattering-based smoke detectors.

Ultra-Wide 120° Emission Angle

  • Ensures broad coverage within the smoke sensing chamber;
  • Increases the probability of light scattering interaction with smoke particles.

Compact 2835 SMD Package

  • Enables compact product design, perfect for slim or mini smoke detectors;
  • Compatible with automated surface-mount technology (SMT) for high-volume manufacturing.

Lead-Free & RoHS Compliant

  • Environmentally friendly;
  • Meets international safety and material compliance standards.

Low Power Consumption

  • Optimized for battery-powered devices, such as wireless smoke detectors;
  • Extends battery life, supporting long-term operation (often >5 years).





Technical Parameters:



Type IR LED
Peak wavelength 1550nm
Forward Voltage 0.85-1.05V(IF=20mA)
0.9-1.2V(IF=100mA)
Size 2.8x3.5mm
Power Dissipation 2mW
Pulse Forward Current 50mA
View Angle 120 deg
Radiant Power 1.2-2.5mW(IF=20mA)
6.2mW(IF=100mA)

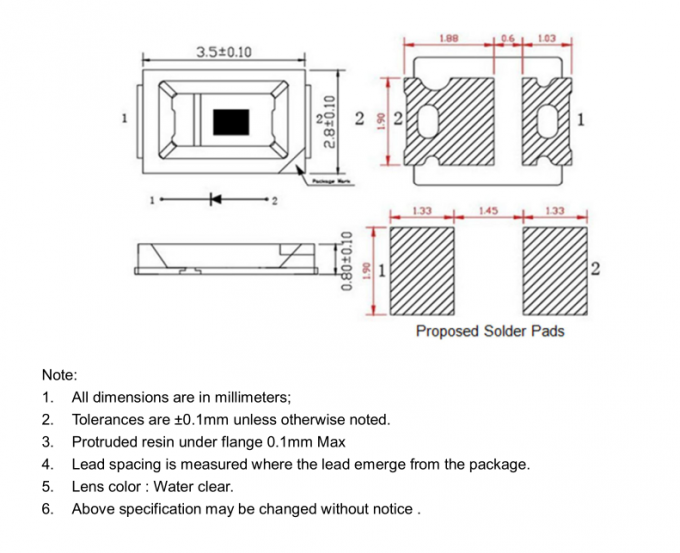

Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector 0

Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector 1





Certificates:

Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector 2

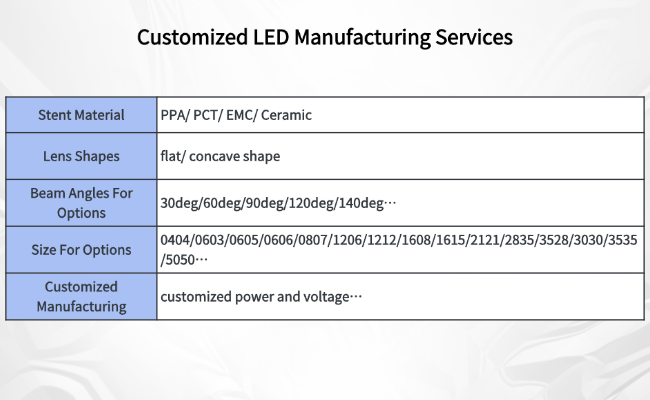

Customization:



Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector 3



Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector 4

Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector 5

Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector 6



Support and Services:

Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector 7





FAQ
Q1:What is the nature of your company, are you a manufacturer or a trading company?
A1: We take pride in being a distinguished manufacturer with over 10 years of experience in the LED industry.


Q2: Why choose you as a LED supplier?
A2: You will get high quality LEDs with competitive prices, fast delivery and good after-sale service.


Q3: Is there a minimum order quantity (MOQ) for LED products?
A3: Yes, we do have a minimum order quantity (MOQ) requirement. Typically, the MOQ is set at 1000 pieces

for the majority of our LEDs, except for white color and warm white LEDs.


Q4: Can I request samples before placing a larger order?
A4: We understand the importance of evaluating our products before making a substantial purchase. We offer

some free of charge samples for most of the LEDs but please agree to bear the freight for the sample delivery.


Q5: What is the estimated lead-time for order delivery?
A5: Once the payment is confirmed, we strive to ensure efficient order processing and timely delivery. In general,

delivery leadtime for most orders is 7-10 days after payment is confirmed. If shipping by express, the shipment

takes 5-7 days to arrive by air.


Q6: How are the goods shipped, and what is the expected delivery timeframe?
A6: We primarily rely on renowned courier services such as DHL, UPS, FedEx for shipping our products. The

delivery time will depend on the courier's schedule and your location.


Q7: Can you provide additional services such as LED pin cutting or customized packaging as per our

specific requirements?
A7: Absolutely. We value our customers' unique needs, and as such, we offer customized manufacturing

services. Whether it's LED pin cutting or personalized packaging, we are committed to fulfilling your requests

to the best of our ability.


Q8: How about the quality of your LEDs? Do you have any certificates for your LEDs?
A8: All our LEDs are good quality with RoHS, CE and FCC certificates.


Q9: Can I request customized LED specifications or special requirements?
A9: Certainly. We understand that different projects may have specific LED requirements. We offer

customization options for LED specifications, such as color temperature, beam angle, and brightness, to meet

your unique needs. Please contact our sales team to discuss your specific requirements.


Q10: What payment methods do you accept?
A10: We accept various payment methods, including bank transfers, PayPal, and credit card payments. Our

team will provide you with detailed payment instructions upon order confirmation.



Packing and Shipping:

Infrared 2835 Pb-free 1550nm 120deg Infrared IR LED SMD Diode Emitter For Smoke Detector 8
