Product Details
Model Number: DM-CSP-SCS-0705A4-0.3W
Payment & Shipping Terms
Minimum Order Quantity: 200K
Delivery Time: 7-10 workdays
Payment Terms: T/T, Paypal, Western Union
Type: |
CSP LED Chip |
HS Code: |
8541410000 |
Application: |
Indoor And Outdoor Displays |
Beam Angle: |
160deg |
Size: |
700x450x300μm |
Forward Voltage: |
2.8-3.2V |
Forward Current: |
100mA |
Storage Temperature Range: |
5-35℃ |
Working Temperature Range: |
-20-85℃ |
Junction Temperature: |
150℃ |
Antistatic: |
2.0kV(HBM) |
Luminous Flux: |
22-28LM(Ra>80) |
Type: |
CSP LED Chip |
HS Code: |
8541410000 |
Application: |
Indoor And Outdoor Displays |
Beam Angle: |
160deg |
Size: |
700x450x300μm |
Forward Voltage: |
2.8-3.2V |
Forward Current: |
100mA |
Storage Temperature Range: |
5-35℃ |
Working Temperature Range: |
-20-85℃ |
Junction Temperature: |
150℃ |
Antistatic: |
2.0kV(HBM) |
Luminous Flux: |
22-28LM(Ra>80) |
Features:

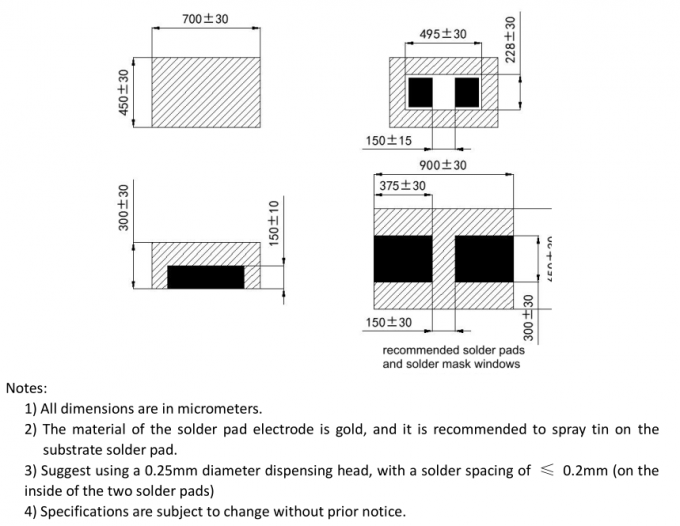

Dimensions:
Specification:
|
Type |
SCS 0705 |
|
Forward Voltage |
2.8-3.2V |
|
Forward Current |
100mA |
|
Electrostatic Discharge |
2.0kV(HBM) |
|
Illumination method |
top and 4-side emitting |
|
Junction Temperature |
125℃ |
|
Working Temperature Range |
-20-85℃ |
|
Storage Temperature Range |
5-35℃ |
Related Series:
| Model | Size | Color Temperature | Forward Voltage(Min) | CRI(Ra) | Luminous Flux | Forward Current(mA) | Viewing Angle 2θ½ |
|---|---|---|---|---|---|---|---|
| SCS-0704 | 0.7mm × 0.4mm × 0.3mm | 1800K-6500K coordinate customization | 2.7-2.9V | Ra>80/>90/>95 | 5-6LM | 20mA | 160° |
| SCS-0705 | 0.7mm × 0.45mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 22-28LM | 100mA | 160° |
| SCP-0805 | 0.8mm × 0.45mm × 0.4mm | 1800K-6500K coordinate customization | 2.7-2.9V | Ra>80/>90/>95 | 5-6LM | 20mA | 160° |
| SCS-0905 | 0.9mm × 0.5mm × 0.4mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 25-30LM | 120mA | 160° |
| SCS-1005 | 1.0mm × 0.5mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 35-45LM | 150mA | 160° |
| SCS-1010 | 1.06mm × 0.96mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 80-92LM | 300mA | 160° |
| SCS-1313 | 1.3mm × 1.3mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 160-230LM | 700mA | 160° |

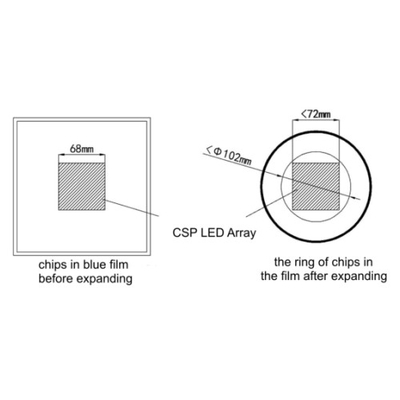

Handling Precautions:

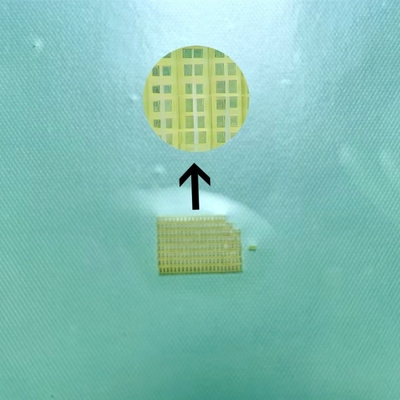

1) When expanding the CSP LEDs in the film, it is necessary to ensure that CSP LEDs are in the center
area of the expanding ring and should not deviate too much.
2) The width of the entire CSP LED area after chip expanding should be ≤ 72mm, and the maximum
diameter of the expanded chip area should be ≤ 102mm.
Support and Services:FAQ:
Q1:What is the nature of your company, are you a manufacturer or a trading company?
A1: We take pride in being a distinguished manufacturer with over 10 years of experience in the LED industry.
Q2: Why choose you as a LED supplier?
A2: You will get high quality LEDs with competitive prices, fast delivery and good after-sale service.
Q3: Is there a minimum order quantity (MOQ) for LED products?
A3: Yes, we do have a minimum order quantity (MOQ) requirement. Typically, the MOQ is set at 1000 pieces
for the majority of our LEDs, except for white color and warm white LEDs.
Q4: Can I request samples before placing a larger order?
A4: We understand the importance of evaluating our products before making a substantial purchase. We
offer some free of charge samples for most of the LEDs but please agree to bear the freight for the sample delivery.
Q5: What is the estimated lead-time for order delivery?
A5: Once the payment is confirmed, we strive to ensure efficient order processing and timely delivery. In general,
delivery leadtime for most orders is 7-10 days after payment is confirmed. If shipping by express, the shipment
takes 5-7 days to arrive by air.
Q6: How are the goods shipped, and what is the expected delivery timeframe?
A6: We primarily rely on renowned courier services such as DHL, UPS, FedEx for shipping our products.
The delivery time will depend on the courier's schedule and your location.
Q7: Can you provide additional services such as LED pin cutting or customized packaging as per our
specific requirements?
A7: Absolutely. We value our customers' unique needs, and as such, we offer customized manufacturing services.
Whether it's LED pin cutting or personalized packaging, we are committed to fulfilling your requests to the best of
our ability.
Q8: How about the quality of your LEDs? Do you have any certificates for your LEDs?
A8: All our LEDs are good quality with RoHS, CE and FCC certificates.
Q9: Can I request customized LED specifications or special requirements?
A9: Certainly. We understand that different projects may have specific LED requirements. We offer customization
options for LED specifications, such as color temperature, beam angle, and brightness, to meet your unique needs.
Please contact our sales team to discuss your specific requirements.
