Product Details

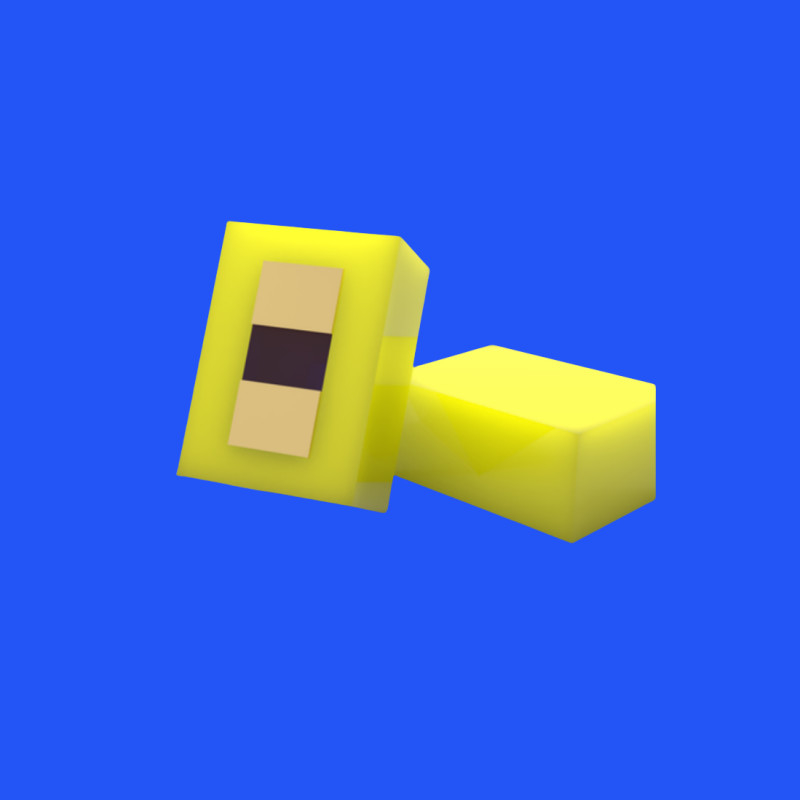

Model Number: DM-CSP-SCS-0905A0-0.4W
Payment & Shipping Terms
Minimum Order Quantity: 200K
Delivery Time: 7-10 workdays
Payment Terms: T/T, Paypal, Western Union
Type: |
CSP LED Chip |
HS Code: |
8541410000 |
Application: |
Light Strip/lamp Tube/tube Light |
Beam Angle: |
160deg |
Size: |
900x500x400μm |
Forward Voltage: |
2.8V-3.2V |
Correlated Color Temperature: |
1800K-6500K |
Forward Current: |
120mA |
Luminous Flux: |
25-30LM(Ra>80) |
Electrostatic Discharge: |
2.0 KV(HBM) |
Working Temperature Range: |
-20-85℃ |
Storage Temperature Range: |
5-35℃ |
Type: |
CSP LED Chip |
HS Code: |
8541410000 |
Application: |
Light Strip/lamp Tube/tube Light |
Beam Angle: |
160deg |
Size: |
900x500x400μm |
Forward Voltage: |
2.8V-3.2V |
Correlated Color Temperature: |
1800K-6500K |
Forward Current: |
120mA |
Luminous Flux: |
25-30LM(Ra>80) |
Electrostatic Discharge: |
2.0 KV(HBM) |
Working Temperature Range: |
-20-85℃ |
Storage Temperature Range: |
5-35℃ |
Features:
1) CSP chip level packaging technology for the new generation of LED products.
2) Made using flip chip and fluorescent film.
3) High temperature resistance, good heat dissipation, and less light decay.
4) It can be arranged and combined arbitrarily within a small luminescent surface, with good color
consistency.

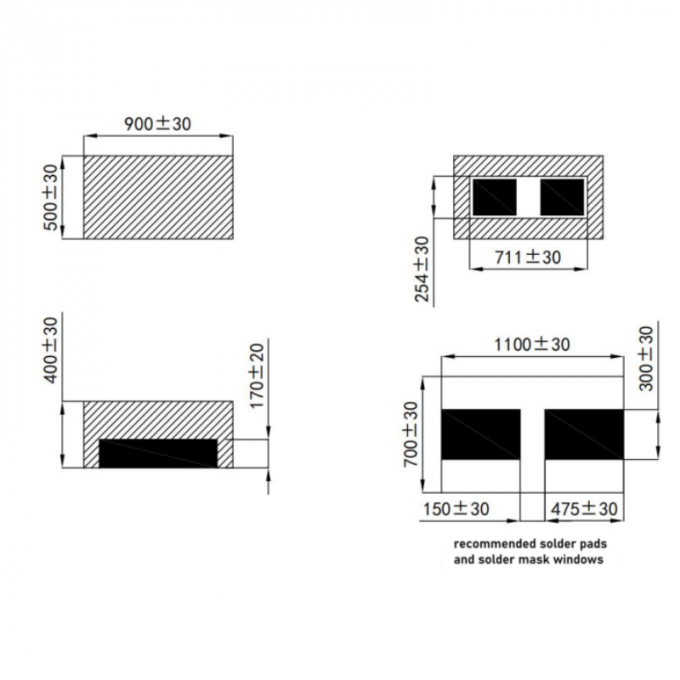

Dimensions:
Specification:
|
Type |
SCS 0905 |
|
Forward Voltage |
2.8-3.2V |
|
Color Temperature |
1800K-6500K |
|
Forward Current |
120mA |
|
Electrostatic Discharge |
2.0 kV (HBM) |
|
Luminous Flux |
25-30LM(Ra>80) |
1. Indoor and outdoor displays
2. Optical indicators
3. Backlight
4. Light strip/lamp tube/tube light
5. Interior automotive lighting
6. Signal and symbol luminaire
Related Series:
| Model | Size | Color Temperature | Forward Voltage(Min) | CRI(Ra) | Luminous Flux | Forward Current(mA) | Viewing Angle 2θ½ |
|---|---|---|---|---|---|---|---|
| SCS-0704 | 0.7mm × 0.4mm × 0.3mm | 1800K-6500K coordinate customization | 2.7-2.9V | Ra>80/>90/>95 | 5-6LM | 20mA | 160° |
| SCS-0705 | 0.7mm × 0.45mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 22-28LM | 100mA | 160° |
| SCP-0805 | 0.8mm × 0.45mm × 0.4mm | 1800K-6500K coordinate customization | 2.7-2.9V | Ra>80/>90/>95 | 5-6LM | 20mA | 160° |
| SCS-0905 | 0.9mm × 0.5mm × 0.4mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 25-30LM | 120mA | 160° |
| SCS-1005 | 1.0mm × 0.5mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 35-45LM | 150mA | 160° |
| SCS-1010 | 1.06mm × 0.96mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 80-92LM | 300mA | 160° |
| SCS-1313 | 1.3mm × 1.3mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 160-230LM | 700mA | 160° |
Handling Precautions:

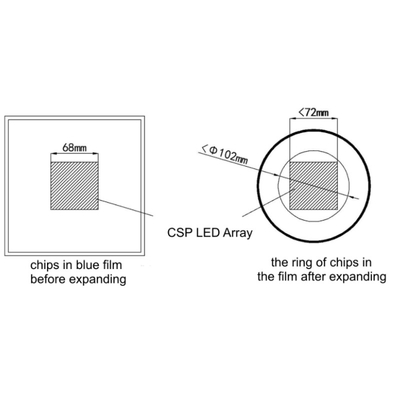

1) When expanding the CSP LEDs in the film, it is necessary to ensure that CSP LEDs are in the center
area of the expanding ring and should not deviate too much.
2) The width of the entire CSP LED area after chip expanding should be ≤ 72mm, and the maximum
diameter of the expanded chip area should be ≤ 102mm.
